Specifications
Fuel Lines
Used 1/4" line from tank to fuel pump + inline filter. 1/4" line from pump to engine. 3/16" from pump to carb x 2, can use 1/4" for all lines but I had the 3/16" to use up.
Engine
EC34PL-02
333cc
61.78 Bore (2.432 in)
55.6 Stroke (2.1886 in)
Spark Gap .017 to .029
Using the .004 in per 1 in of bore these should have min ring gap of .0097
Torque in ft/lbs
Cylinder Head 8mm 16-17 10mm 26-29
Cylinder Base Studs 24-28
Crank Case 8mm 18-20 10mm 23-25
Engine Mount Plate 55-60
Flywheel 60-65
Primary Clutch 35?
Clutch Spider Nut 235!
2 Caliper Carrier Bolts 30 *
4 Bracket Cap Screws 8 *
* Calls for loctite
Clutch
Original clutch has 42 gram weights with Silver spring. Coment part number for replacement clutch is Comet 108exp/102C 217502A
Suspension
'79 Type III Extruded Aluminum
'80 Type VI Extruded Aluminum

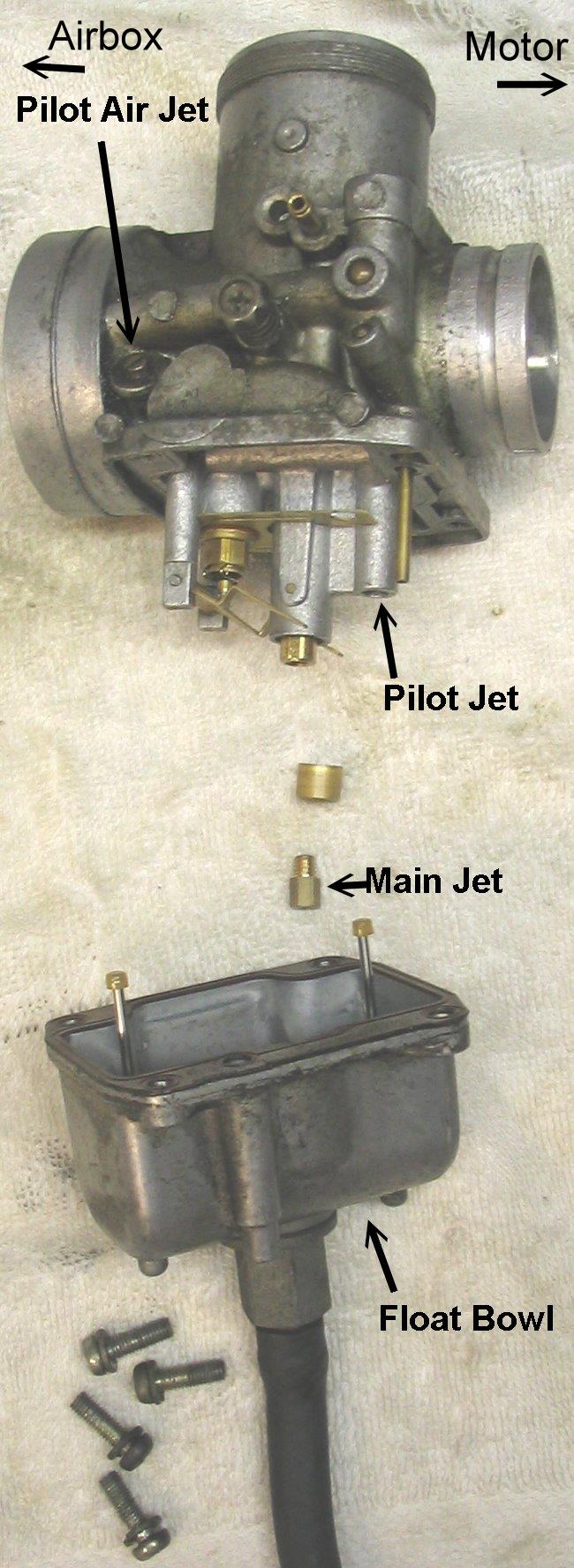

Mikuni VM38
